Instruction Manual

10

Conguration

To congure the USB Serial port:

1. In the Device Manager, double-click on “Ports (COM & LPT)” to expand.

2. Right-click on the newly added serial port and select “Properties”.

3. From within the Properties window, the “Setting“ tabs oer conguration

options for the USB Serial Adapter functions:

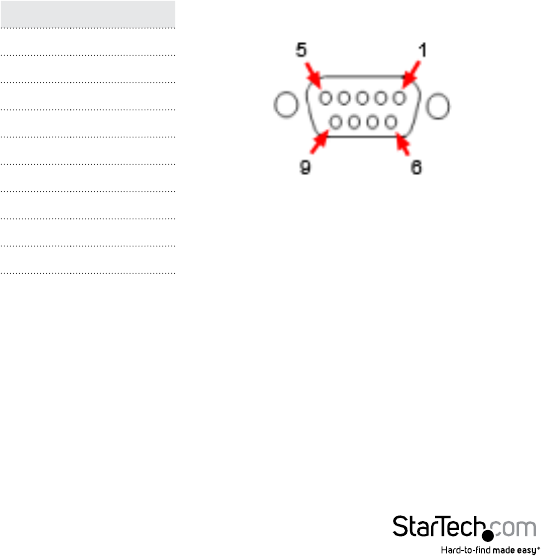

Pinout

Pin Signal

1 DCD

2 TxD

3 RxD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI
